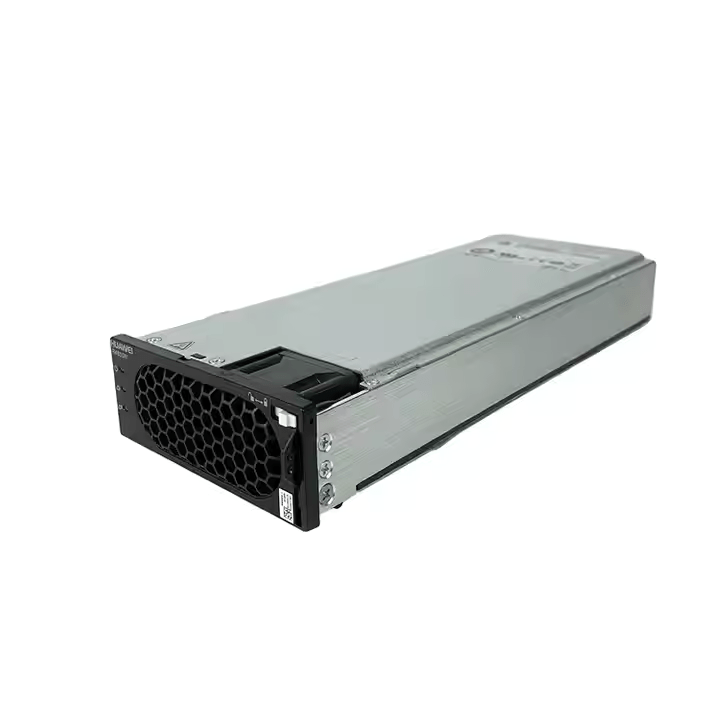

Huawei 3000W 48V R4850N6 Rectifier Module
Huawei 3000W 48V R4850N6 Rectifier Module is a high-efficiency power solution designed for telecom and industrial applications. It ensures stable power conversion, advanced protection features, and seamless performance. This module is perfect for network infrastructure, data centers, and telecom base stations. Buy now from Datacom Technologies BD at the best price with expert support and fast delivery.
Huawei 3000W 48V R4850N6 Rectifier Specification
| Feature | Specification |
|---|---|
| Input Voltage | 85-290 V AC |
| Frequency | 45-66 Hz (Rated: 50 Hz and 60 Hz) |
| Input Current | < 16 A (Rated) / < 19 A (Maximum) |
| Power Factor | > 0.99 (at 100% load) |
| THD | ≤ 5% (at ≥ 50% load) |
| Output Voltage | 42-58 V DC (Rated: 53.5 V DC) |
| Output Power | 3000 W (176 V AC – 290 V AC) |
| Voltage Regulation | ≤ ± 0.6% Vo |
| Ripple and Noise | ≤ 200 mVp-p (Bandwidth ≤ 20 MHz) |
| Efficiency | > 93% (230 V AC, 30%-100% load) |
| Dimensions | 40.8 mm x 105 mm x 269 mm |
| Weight | ≤ 2 kg |
| Cooling | Built-in fan (adjustable speed) |
| Operating Temperature | -25°C to +75°C |
| Storage Temperature | -40°C to +75°C |
| Relative Humidity | 5%-95% (non-condensing) |
| Altitude | ≤ 5000 m (with temperature derating above 3000 m) |
| Communication | CAN |
| Protection | Overvoltage, undervoltage, overcurrent, short circuit, over temperature |
| Certifications | CE, RoHS |
Description
The Huawei R4850N6 is a high-efficiency, high-power-density rectifier module designed for telecommunications and other critical power applications. It converts a wide range of AC input voltages (85-290 V AC) to a stable 53.5 V DC output, making it compatible with various power systems.
Key Features and Benefits:
- High Efficiency: With a peak efficiency of over 94%, the R4850N6 minimizes power loss and reduces operating costs.
- Wide Input Voltage Range: The ability to operate across a broad range of AC input voltages ensures compatibility and stability in diverse power environments.
High Power Density: The compact design allows for easy integration into space-constrained systems. - Digital Control: The digital control system enables precise monitoring and adjustment of output parameters, enhancing system reliability.
- Comprehensive Protection: The module incorporates multiple protection features to safeguard against various electrical faults, ensuring safe and reliable operation.
- Hot-Swappable: The hot-swap functionality allows for easy maintenance and replacement without interrupting the system’s power supply.
- CAN Communication: The integrated CAN communication interface enables remote monitoring and control of the rectifier module.
Applications:
The Huawei R4850N6 rectifier module is ideal for various applications, including:
- Telecommunications power systems
- Data centers
- Industrial power supplies
- Renewable energy systems
Supported/Comparable Models
While the R4850N6 is a specific model, Huawei offers a range of similar rectifier modules with varying power outputs and features. Some comparable models include:
- R4850G6: A similar 3000W rectifier with potentially different features or revisions.
- R4850N2: Another 3000W rectifier with possible variations in specifications.
- R4830N2: A lower power (1605W) rectifier with similar features.
