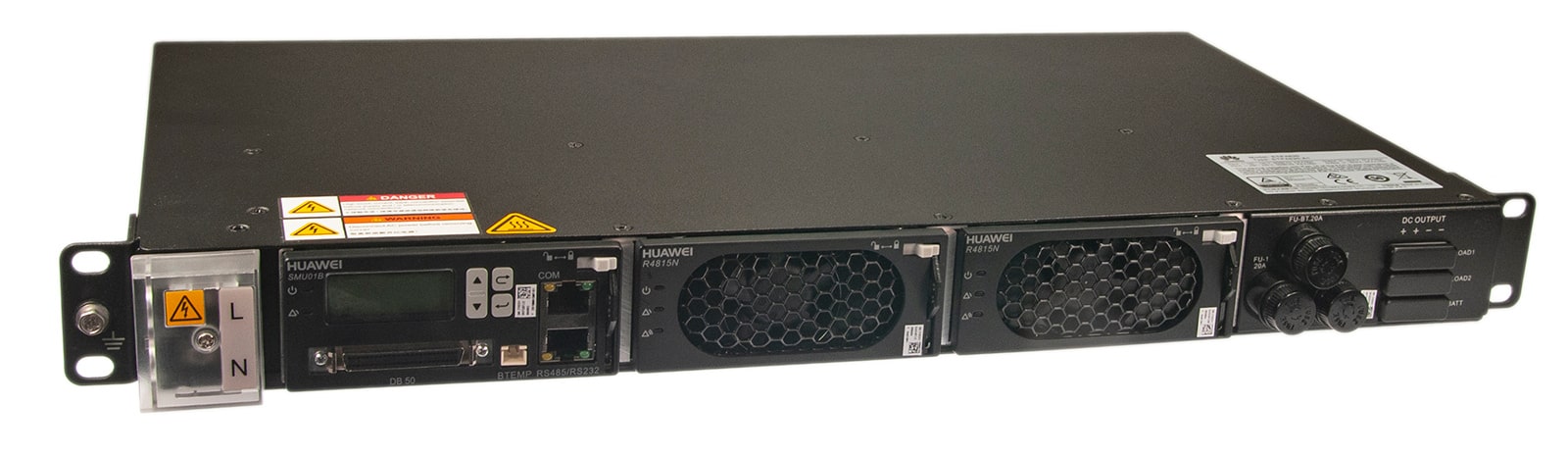

Huawei 2000W 48V Rectifier – ETP4830-A1
The Huawei ETP4830-A1 2000W 48V Rectifier is a crucial component for ensuring stable power in telecom and industrial settings. Datacom Technologies BD offers competitive pricing on this high-quality rectifier in Bangladesh. We specialize in providing reliable power solutions and offer expert support for all our products. Contact us today for the best Huawei ETP4830-A1 price in BD.
Bangladesh
| Feature | Specification |
|---|---|
| System | |
| Dimensions | 442 x 255 x 43.6 mm (1U) |
| Weight | 8 kg |
| Cooling System | Passive |
| Mounting | 19-inch rack or cabinet |
| Protection Level | IP20 |
| AC Input | |
| Input Mode | 220VAC single-phase or 110VAC dual-live wire |
| Input Voltage | 85 – 300 V AC |
| Input Frequency | 45 – 66 Hz (50/60 Hz) |
| Surge Protection | 5 kA / 10 kA (8/20 µs) |
| DC Output | |
| Voltage Range | 42 – 58 V DC (rated 53.5 V DC) |
| Max. Power | 2000 W |
| Battery Breaker | 1 x 20 A |
| Load Breakers | 2 x 20 A |
| Rectifier Module (R4815N1) | |
| Input Voltage | 85 – 300 V AC |
| Power | 1000 W |
| Efficiency | > 96% |
| Dimensions | 95.5 x 208 x 40.8 mm |
| Weight | < 1.1 kg |
| Controller (SMU01C) | |
| Digital Inputs | 2 |
| Alarm Outputs | 4 (dry contact) |
| Communication Ports | RS232, RS485 |
| Display | LCD |
| Environmental | |
| Operating Temp. | -40 to 70 °C |
| Storage Temp. | -40 to 70 °C |
| Humidity | 5% – 95% (non-condensing) |
Description
The Huawei ETP4830-A1 is a compact and efficient 2000W 48V rectifier designed for a variety of applications, including telecommunications, data centers, and industrial power systems. Its modular design, high power density, and intelligent management features make it a reliable and cost-effective solution for providing DC power.
Key Features and Benefits
- High Efficiency: The ETP4830-A1 boasts a rectifier efficiency of over 96%, minimizing energy loss and operating costs. This high efficiency translates to significant savings over time, especially in continuous operation environments.
- Wide Input Voltage Range: The rectifier supports a wide AC input voltage range (85-300V), making it adaptable to various power conditions and ensuring stable operation even in fluctuating power environments.
- Modular Design: The system’s modular design allows for easy configuration and scalability. It can accommodate up to two rectifier modules, providing flexibility to meet changing power needs.
- Compact Size: With a 1U height, the ETP4830-A1 is space-saving and ideal for installations where rack space is limited. Its compact form factor simplifies integration into existing systems.
- Intelligent Management: The built-in SMU01C controller provides comprehensive monitoring and management capabilities. It offers features such as remote monitoring, alarm management, and battery management, ensuring optimal system performance and reliability.
- Hot-Swappable Modules: The rectifier modules are hot-swappable, allowing for easy maintenance and replacement without interrupting the power supply. This feature minimizes downtime and enhances system availability.
- Comprehensive Protection: The ETP4830-A1 includes robust protection features such as overvoltage protection, overcurrent protection, and short circuit protection, safeguarding the system and connected devices from potential damage.
- Wide Operating Temperature Range: The rectifier can operate in a wide temperature range (-40 to 70 °C), making it suitable for deployment in various environments, including harsh outdoor conditions.
Applications
The Huawei ETP4830-A1 is well-suited for a broad range of applications, including:
- Telecommunications: Powering wireless base stations, fiber optic networks, and other telecom equipment.
- Data Centers: Providing reliable DC power for servers, storage systems, and network devices.
- Industrial Automation: Powering control systems, industrial equipment, and other automation components.
- Renewable Energy: Supporting power conversion and management in renewable energy systems.
Get in Touch with Datacom Technologies (BD)
- 📞 Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Huawei 2000W 48V Rectifier – ETP4830-A1 in Bangladesh?
The latest price of Huawei 2000W 48V Rectifier – ETP4830-A1 in Bangladesh starts from BDT-275,000/= to BDT-325,000/= (Estimated) depending on quantity and warranty. To order your Huawei Rectifier Module, please contact us by call or WhatsApp (+8801748173213). You can also browse our online shop “Datacom Technologies (BD)” and order your Huawei Rectifier directly.
