Description

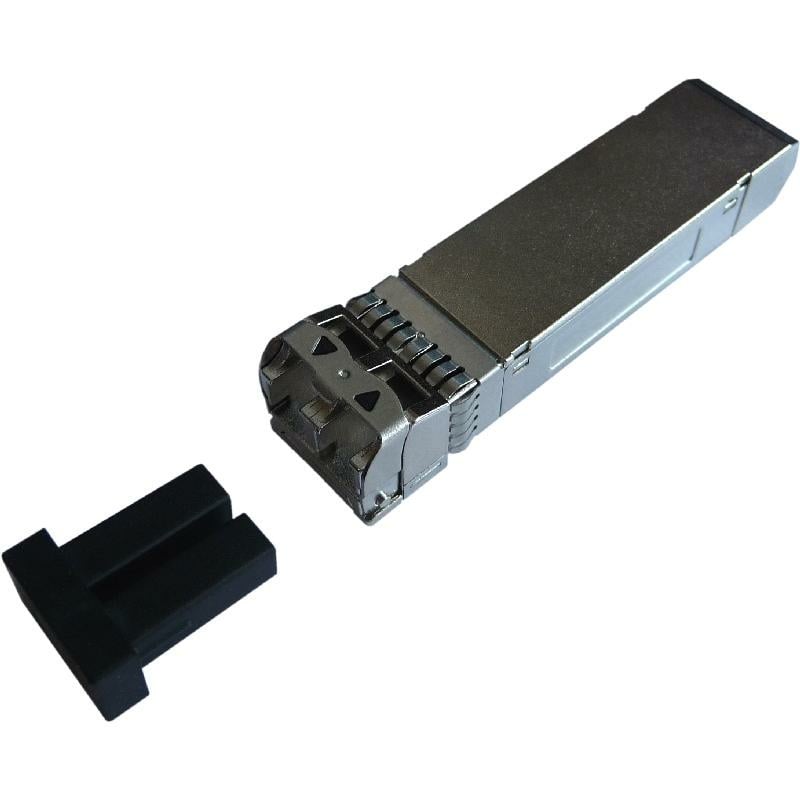

Broadcom SFP-10G-ER 40Km SFP+ Transceiver
The Broadcom SFP-10G-ER is a 10Gbps SFP+ transceiver designed for long-distance data transmission over single-mode fiber (SMF). It operates at a 1550 nm wavelength with an LC duplex connector, supporting distances up to 40 km (24.85 miles). Ideal for enterprise, telecom, and data center applications.
Broadcom SFP-10G-ER Transceiver Specification
| Specification | Details |
|---|---|
| Brand | Broadcom |
| Model | SFP-10G-ER |
| Form Factor | SFP+ (Small Form-Factor Pluggable) |
| Data Rate | 10 Gbps |
| Wavelength | 1550 nm |
| Connector Type | LC Duplex |
| Reach | Up to 40 km (24.85 miles) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Transmitter Type | EML (Electro-Absorption Modulated Laser) |
| Receiver Type | PIN Photodiode |
| Power Budget | 14 dB |
| Tx Power | 0 dBm to +4 dBm |
| Rx Sensitivity | -14 dBm |
| Power Consumption | < 1.5W |
| Digital Diagnostics | Yes (DDM – Digital Diagnostics Monitoring) |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Storage Temperature | -40°C to 85°C |
| Voltage Supply | 3.3V |
| Compliance Standards | IEEE 802.3ae 10GBASE-ER, SFF-8431, SFF-8472 |
| MTBF (Mean Time Between Failures) | > 1,000,000 hours |
Description
The Broadcom SFP-10G-ER is a high-performance 10G SFP+ transceiver module designed for long-range fiber optic communications. It supports 10 Gigabit Ethernet (10GbE) and OC-192/STM-64 networks over a single-mode fiber (SMF) link with a maximum transmission distance of 40 kilometers. Operating at a 1550 nm wavelength, this transceiver is ideal for enterprise networks, data centers, service providers, and metropolitan area networks (MANs) requiring extended reach and reliability.
- Performance & Reliability: The Broadcom SFP-10G-ER module features an EML (Electro-Absorption Modulated Laser) transmitter and a PIN photodiode receiver, ensuring high-speed data transmission with minimal signal degradation. It supports a power budget of 14 dB, making it suitable for long-distance links without the need for amplification or repeaters. To maintain optimal performance, the transceiver integrates Digital Diagnostics Monitoring (DDM), which provides real-time insights into temperature, voltage, laser bias current, transmit power, and receive power. This feature enhances network reliability and simplifies troubleshooting, minimizing downtime and maintenance costs.
- Compliance & Compatibility: The Broadcom SFP-10G-ER complies with industry standards, including IEEE 802.3ae 10GBASE-ER, SFF-8431, and SFF-8472, ensuring interoperability with various networking devices. It operates on a standard LC duplex connector for seamless integration with existing fiber infrastructure. Additionally, the module is hot-swappable, allowing network administrators to replace or upgrade transceivers without disrupting network operations.
- Energy Efficiency & Durability: With a low power consumption of less than 1.5W, the SFP-10G-ER is designed for energy-efficient operation, reducing heat generation and extending equipment lifespan. Its rugged construction ensures durability in demanding environments, and it operates within a commercial temperature range of 0°C to 70°C.
Applications
- Data Centers & Cloud Networks – Ideal for long-haul 10G Ethernet connections between data centers.
Telecommunication Networks – Supports OC-192/STM-64 SONET/SDH networks, commonly used by telecom providers. - Enterprise & Campus Networks – Enables high-speed backbone connections over extended distances.
Metropolitan Area Networks (MANs) – Connects city-wide fiber networks for ISPs and large-scale institutions. - Financial & Trading Networks – Provides ultra-low latency connections for high-frequency trading and banking institutions.
- The Broadcom SFP-10G-ER module offers a cost-effective and reliable solution for long-range 10G Ethernet applications. Its combination of high performance, energy efficiency, and industry compliance makes it a preferred choice for enterprises and service providers.
Buy Broadcom SFP-10G-ER 40Km SFP+ Transceiver from Datacom Technologies
In Bangladesh, you can get original Broadcom SFP-10G-ER 40Km SFP+ Transceiver From Datacom Technologies. We have a large collection of latest Broadcom SFP+ Transceiver to purchase. Order Online Or Visit our Office to get yours at lowest price. The Broadcom SFP-10G-ER 40Km SFP+ Module comes with a 1-year warranty.
Get in Touch with Datacom Technologies (BD)
- 📞 Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Broadcom SFP-10G-ER 40Km SFP+ Transceiver in Bangladesh?
The latest price of Broadcom SFP-10G-ER 40Km SFP+ Transceiver in Bangladesh starts from BDT-16,000/= to BDT-22,000/= (Estimated) depending on quantity and warranty. To order your Broadcom SFP+ Transceiver, please contact us by call or WhatsApp (+8801748173213). You can also browse our online shop “Datacom Technologies (BD)” and order your Broadcom 10G SFP+ Transceiver.
