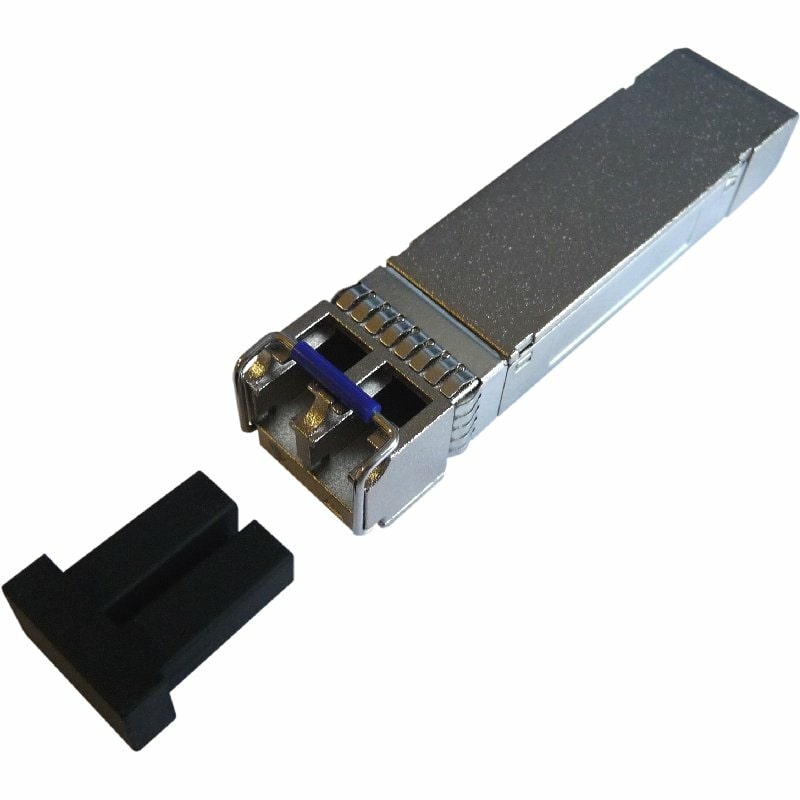

Broadcom SFP-25G-LR-S 10Km SFP28 Transceiver
The Broadcom SFP-25G-LR-S is a 25Gbps SFP28 transceiver designed for long-range transmission over single-mode fiber (SMF). It operates at a wavelength of 1310nm and supports a transmission distance of up to 10km. Featuring an LC duplex connector, it’s ideal for high-speed, long-distance networking applications.
Specification
| Specification | Details |
|---|---|
| Brand | Broadcom |
| Model | SFP-25G-LR-S |
| Form Factor | SFP28 |
| Data Rate | 25Gbps |
| Wavelength | 1310nm |
| Connector Type | LC Duplex |
| Cable Type | Single-mode Fiber (SMF) |
| Transmission Distance | Up to 10km |
| Transmitter Type | DFB Laser |
| Receiver Type | PIN Photodiode |
| Temperature Range | 0°C to 70°C (Commercial) |
| Power Consumption | ≤ 1W |
| DDM/DOM | Supported |
| Compliance | IEEE 802.3by, SFF-8472, SFF-8431, RoHS, MSA |
| MTBF (Mean Time Between Failures) | > 1 Million Hours |
Description
The Broadcom SFP-25G-LR-S is a high-performance 25G SFP28 (Small Form-Factor Pluggable) optical transceiver designed for use in high-speed networking applications, data centers, and enterprise environments. This module is specifically engineered to support 25Gbps Ethernet (25GbE) transmission over single-mode fiber (SMF) with a reach of up to 10 kilometers (10Km).
Key Features & Benefits:
- High-Speed Performance: The SFP-25G-LR-S supports a 25Gbps line rate, making it an ideal choice for modern data center interconnects, enterprise networks, and carrier-grade deployments. It adheres to IEEE 802.3by 25GBASE-LR standards, ensuring reliable and efficient transmission.
- Optical and Electrical Characteristics: The module utilizes a 1310nm DFB laser transmitter for optical signal transmission and a PIN photodiode receiver for signal reception. This combination allows it to achieve stable and error-free communication over single-mode fiber (SMF) at distances of up to 10Km.
- Low Power Consumption: With a power consumption of less than 1W, the Broadcom SFP-25G-LR-S ensures energy-efficient operation, reducing the overall power footprint of network infrastructure while maintaining high performance.
- Compact and Hot-Pluggable: This transceiver comes in an SFP28 form factor, which is hot-pluggable. This means it can be inserted or removed from a compatible port without requiring a network reboot, thus minimizing downtime and simplifying maintenance.
- Digital Diagnostics Monitoring (DDM/DOM): The module features Digital Diagnostic Monitoring (DDM), allowing real-time monitoring of parameters such as temperature, voltage, laser bias current, transmitted power, and received power. This enables proactive network management and troubleshooting.
- Wide Compatibility: The SFP-25G-LR-S is Multi-Source Agreement (MSA)-compliant, meaning it is compatible with a wide range of networking devices from Cisco, Arista, Juniper, Dell, HP, and other leading vendors that support 25GBASE-LR interfaces.
Buy Broadcom SFP-25G-LR-S 10Km SFP28 Transceiver from Datacom Technologies
In Bangladesh, you can get original Broadcom SFP-25G-LR-S 10Km SFP28 Module From Datacom Technologies. We have a large collection of latest Broadcom SFP+ Transceiver to purchase. Order Online Or Visit our Office to get yours at lowest price. The Broadcom SFP-25G-LR-S 10Km SFP28 Module comes with a 1-year warranty.
Get in Touch with Datacom Technologies (BD)
- 📞 Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Broadcom SFP-25G-LR-S 10Km SFP28 Transceiver in Bangladesh?
The latest price of Broadcom SFP-25G-LR-S 10Km SFP28 Transceiver in Bangladesh starts from BDT-18,000/= to BDT-32,000/= (Estimated) depending on quantity and warranty. To order your Broadcom SFP+ Transceiver, please contact us by call or WhatsApp (+8801748173213). You can also browse our online shop “Datacom Technologies (BD)” and order your Broadcom 25G SFP+ Transceiver.
