Description

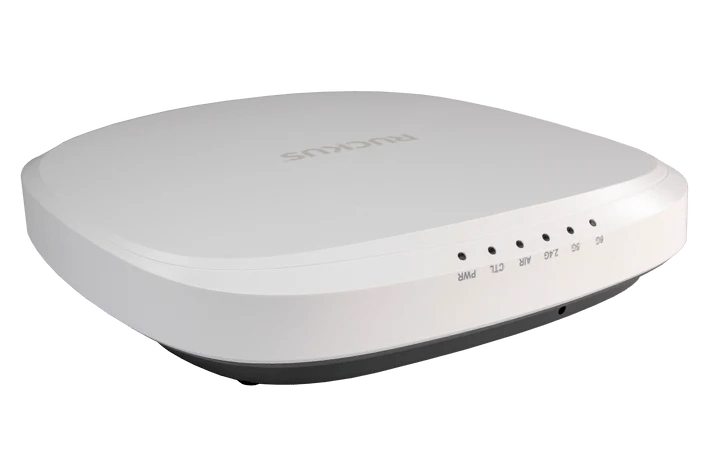

Ruckus R760 wireless Access Point – Wi-Fi 6E
Specification
| Feature | Description |
|---|---|
| Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Maximum Data Rate | Up to 10.8 Gbps |
| Antenna Configuration | Internal BeamFlex+ Antennas with 8×8:8 on 5 GHz and 4×4:4 on 6 GHz |
| MU-MIMO Support | Yes, Up to 8×8:8 (5 GHz) and 4×4:4 (6 GHz) |
| OFDMA and MU-MIMO | Supported for improved multi-device performance |
| Ports | 1x 2.5 GbE RJ-45, 1x 1 GbE RJ-45, USB 2.0 |
| PoE Support | 802.3bt (PoE++) and 802.3at (PoE+) |
| Peak Power Consumption | Up to 25.5 W |
| Security Features | WPA3, WPA2, 802.1X, Radius, Dynamic Pre-Shared Keys |
| Management Options | RUCKUS SmartZone, ZoneDirector, Cloud, Standalone |
| Environment | Indoor, Enterprise Grade |
| Operating Temperature | -20°C to 50°C |
| Mounting Options | Ceiling, Wall, T-Bar |
| Dimensions | 230 x 230 x 57 mm |
| Weight | 1.2 kg |
Description
The Ruckus R760 Wireless Access Point is a high-performance Wi-Fi 6E device designed to deliver cutting-edge connectivity to modern enterprise environments. Equipped with tri-band support (2.4 GHz, 5 GHz, and the newly available 6 GHz), it leverages Wi-Fi 6E technology to maximize capacity and minimize interference in high-density settings. The R760 offers impressive data rates of up to 10.8 Gbps, featuring 8×8:8 MU-MIMO on the 5 GHz band and 4×4:4 MU-MIMO on the 6 GHz band, providing unparalleled speed and reliability.
Enhanced with BeamFlex+ adaptive antenna technology, the R760 ensures optimal signal coverage and minimal interference, while OFDMA and MU-MIMO facilitate efficient handling of simultaneous connections. Its robust security protocols, including WPA3 and Dynamic Pre-Shared Keys, safeguard networks against modern threats.
Designed for enterprise deployments, the R760 seamlessly integrates with RUCKUS management solutions such as SmartZone, ZoneDirector, and Cloud, offering flexible configuration and real-time monitoring. Power is supplied via 802.3bt PoE++, supporting effortless installation without additional electrical wiring.
Ideal for venues like stadiums, conference centers, and large office spaces, the Ruckus R760 sets a new standard in Wi-Fi performance and reliability, paving the way for a next-generation wireless experience.
Key Features:
- Wi-Fi 6E Support: Delivers ultra-fast connectivity with tri-band support (2.4 GHz, 5 GHz, and 6 GHz).
- High Performance: Supports up to 8 spatial streams (4×4:4 in both 5 GHz and 6 GHz bands and 2×2:2 in the 2.4 GHz band).
- Advanced Antenna Technology: Patented BeamFlex+ adaptive antennas for extended coverage and reliable performance.
- Multi-Gigabit Ethernet: Supports up to 2.5 Gbps backhaul with PoE (Power over Ethernet).
- Security and Management: Advanced WPA3 encryption and support for Ruckus Cloud, SmartZone, and Unleashed management options.
- Seamless Roaming: Ensures uninterrupted connectivity for users moving between access points.
- IoT and BLE Support: Built-in IoT radio for BLE and Zigbee integration.
- High User Density: Supports up to 1024 clients per AP, ideal for high-traffic environments.
Where It Can Be Used?
- Enterprises and Offices: Ideal for large offices and corporate environments.
- Educational Institutions: Schools and universities with high device density.
- Healthcare Facilities: Hospitals and clinics requiring reliable connectivity.
- Public Venues and Arenas: High-performance access for large crowds.
- Hospitality and Retail: Seamless and secure guest Wi-Fi connectivity.
Installation Steps:
- Site Survey: Identify optimal AP placement to maximize coverage and performance.
- Mounting the AP: Use wall or ceiling mounts as per the deployment plan.
- Powering the Device: Connect via PoE for both power and data.
- Network Configuration: Access the device via the management platform (Ruckus Cloud, Unleashed, or SmartZone).
- SSID Configuration: Set up SSIDs, security settings, and VLANs.
- Testing and Optimization: Verify coverage, speed, and client connectivity.
User Experience:
- Seamless Connectivity: No lag or dropouts, even in high-density environments.
- Fast Roaming: Move across the network without connectivity interruptions.
- Low Latency: Ideal for real-time applications like video conferencing and AR/VR.
- Enhanced Coverage: BeamFlex+ technology ensures consistent performance.
Why Choose Ruckus T750 Outdoor Access Point?
- Durable and Weatherproof: IP67-rated for harsh outdoor environments.
- Ultra-Fast Wi-Fi 6 Performance: Handles high-density outdoor deployments efficiently.
- Flexible Mounting Options: Wall, pole, and ceiling mount support.
- Advanced Management Options: Compatible with Ruckus Cloud, Unleashed, and SmartZone.
- IoT-Ready: Built-in IoT radio for future-proof deployments.
Buy Ruckus R760 wireless Access Point – Wi-Fi 6E from Datacom BD
Get the original Ruckus R760 wireless Access Point – Wi-Fi 6E in Bangladesh from Datacom BD. We offer a wide range of the latest Ruckus Wi-Fi 6E indoor AP at competitive prices. Order online or visit our office to get yours at the best price. This Ruckus R760 wireless Access Point – Wi-Fi 6E comes with 1 Year warranty.
Get in Touch with Datacom Technologies (BD)
- 📞 Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Ruckus R760 wireless Access Point – Wi-Fi 6E in Bangladesh?
The latest price of Ruckus R760 wireless Access Point – Wi-Fi 6E in Bangladesh starts from Taka 70,000 – 80,000 Taka (Estimated), depending on model, capacity and specification. you can buy the original Ruckus Access Point at the best price from our website or visit our office.
