Description

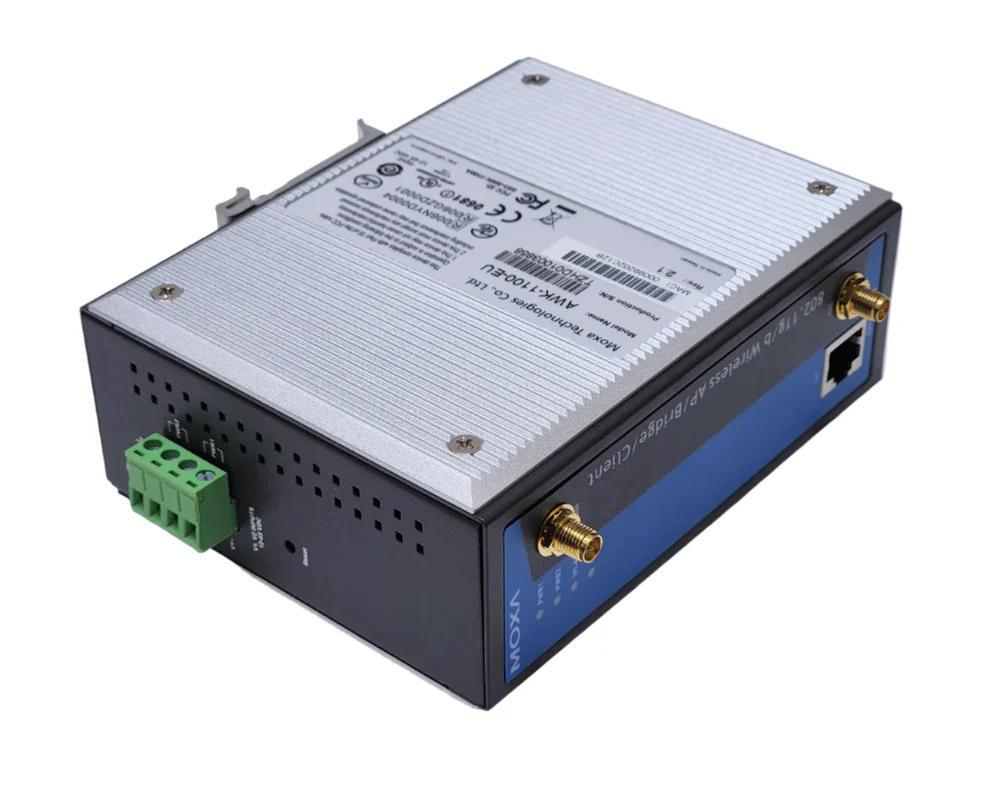

MOXA AWK-1100 Industrial Access Point
The MOXA AWK-1100 Industrial Access Point offers robust wireless connectivity with IEEE 802.11b/g support, designed for demanding industrial environments. With features like PoE, wide temperature tolerance, and multiple security protocols, it ensures reliable and secure communication. Buy from Datacom Technologies BD for genuine products and expert local support.
Specification Table
| Spec | Details |
|---|---|
| Standards | IEEE 802.11b/g; IEEE 802.3u 10/100 Base‑TX; IEEE 802.3af PoE |
| Frequency Range | 2.4–2.4835 GHz DSSS |
| Data Rates & Modulation | OFDM @54 Mbps; CCK @11/5.5 Mbps; DQPSK @2 Mbps; DBPSK @1 Mbps |
| Operating Channels | US 1–11; EU 1–13; JP 1–14 |
| Security | 64/128-bit WEP, WPA (TKIP), IEEE 802.1X/RADIUS, MAC filtering, SSID hide |
| Transmit Power | +18 dBm ±1.5 dBm @11 Mbps; +14 dBm ±1.5 dBm @54 Mbps |
| Receive Sensitivity | b: –87 to –81 dBm; g: –86 to –68 dBm (various rates) |
| Antenna | 2 dBi diversity; RP‑SMA connector |
| Ethernet Port | 10/100Base‑T(X) auto‑negotiation |
| Power Input | 12–45 V DC redundant; 48 V DC PoE (IEEE 802.3af); 0.3 A @24 V; reverse polarity protection |
| LED Indicators | PWR1, PWR2, WLAN, LAN (Link/ACT) |
| Dimensions & Weight | 53.6×135×105 mm; 800 g; IP30 metal case |
| Mounting Options | DIN‑Rail or panel/wall mounting (optional kit) |
| Operating Temp / Humidity | 0 to 60 °C; storage −20 to 70 °C; RH 5–95% non‑condensing |
| Certifications & Safety | EN60950‑1, UL60950‑1, UL/cUL Class I Div 2, ATEX Zone 2 (pending), FCC Part 15C |
| MTBF | 200,000 hours (MIL‑HDBK‑217F) |
Description
The MOXA AWK-1100 is a rugged industrial‑grade wireless Access Point, Bridge, and AP Client designed to deliver reliable Wi‑Fi coverage in harsh environments. Compliant with IEEE 802.11b/g on the 2.4 GHz band, it delivers up to 54 Mbps through OFDM, and supports legacy rates using CCK, DQPSK, and DBPSK modulation. With configurable transmit power (+18 dBm @11 Mbps, +14 dBm @54 Mbps) and receiver sensitivity ranging from −87 dBm to −68 dBm across different data rates, it offers robust wireless performance.
The unit supports advanced security features including 64/128‑bit WEP, WPA/TKIP, WPA with 802.1X/RADIUS authentication, MAC filtering, and SSID hiding—essential for protecting critical industrial networks. Installation is easy with redundancy in power inputs (12–45 V DC plus PoE), DIN‑rail or panel mounting capability, and Ethernet PoE flexibility. Housed in a compact, IP30-rated metal enclosure (53.6×135×105 mm), it operates across a temperature range of 0–60 °C and tolerates up to 95% relative humidity. With certifications like EN/UL60950‑1, Class I Div 2, FCC, and ATEX Zone 2 (pending), and an MTBF of 200,000 hours, it ensures dependable ease-of-use and longevity. Features like web/SNMP management, LED indicators, and a 1‑year warranty make the AWK‑1100 a trusted choice for industrial wireless networking.
🔑 Key Features of MOXA AWK-1100 Industrial Access Point
- Industrial-grade Design: Built for harsh environments with extended temperature range (-40 to 75°C).
- IEEE 802.11b/g Support: Wireless data rates up to 54 Mbps.
- Rugged Housing: IP30-rated metal enclosure for superior durability.
- Multiple Operating Modes: Functions as an Access Point, Client, or Bridge.
- Long-distance Wireless Communication: Supports wireless transmissions up to 100 meters in open space.
- Redundant Power Inputs: Dual 12–48 VDC power supply for increased reliability.
- Compact Size: Easy to install in control cabinets or space-limited applications.
- Secure Wireless Communication: WPA/WPA2, 802.1x authentication for enterprise-grade security.
🏭 Where It Can Be Used?
- Factory Automation: Enable wireless control systems and SCADA in industrial automation.
- Transportation Systems: Ideal for wireless network deployment in railways and highways.
- Oil & Gas: Suitable for remote monitoring in offshore platforms and refineries.
- Power Substations: Designed to work under EMI-heavy environments in substations.
- Warehouse & Logistics: Great for AGVs, wireless scanners, and IoT devices.
🛠 Installation Steps
- Mounting: Attach to DIN-rail or wall mount with supplied brackets.
- Power Supply Connection: Connect 12–48V DC power input terminals.
- Antenna Installation: Secure external antennas for optimal signal range.
- Network Configuration: Connect via web GUI or CLI to configure IP, SSID, and security settings.
- Deployment: Set operation mode (AP/Client/Bridge) and deploy the device in the field.
✅ Why Choose AWK‑1100 via Datacom Technologies BD?
- 🔹 100% Genuine MOXA Product: Datacom Technologies BD is a trusted and verified distributor of MOXA industrial networking solutions in Bangladesh. Every AWK‑1100 unit is sourced directly from MOXA’s authorized supply chain, ensuring authenticity and full manufacturer warranty.
- 🔹 Competitive Price in BD: Datacom offers the best price in BD for the MOXA AWK‑1100, making industrial-grade wireless connectivity more affordable without compromising on quality.
- 🔹 Local Warranty & Support: Enjoy Bangladesh-based technical support, fast replacements, and warranty services. This reduces downtime and ensures reliable service continuity in critical operations.
- 🔹 Ready Stock & Fast Delivery: With in-stock availability and nationwide delivery, Datacom can fulfill urgent project requirements for factories, warehouses, or automation systems within 24–72 hours.
- 🔹 Expert Consultation: Get pre-sale guidance and after-sale configuration assistance from Datacom’s experienced networking engineers who specialize in industrial-grade wireless systems like MOXA.
Buy MOXA AWK-1100 Industrial Access Point at the Best Price from Datacom BD Online
In Bangladesh, you can get MOXA AWK-1100 Industrial Access Point From Datacom. We have a large collection of latest MOXA Access Point to purchase. Order Online Or Visit our Office to get yours at lowest price. The MOXA AWK-1100 Industrial Access Point comes with 1 Year warranty.
Get in Touch with Datacom Technologies (BD)
- 📞 Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of MOXA AWK-1100 Industrial Access Point in Bangladesh?
The estimated price of MOXA AWK-1100 Industrial Access Point in Bangladesh is 52,500৳. You can buy the MOXA AWK-1100 Industrial Access Point at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
