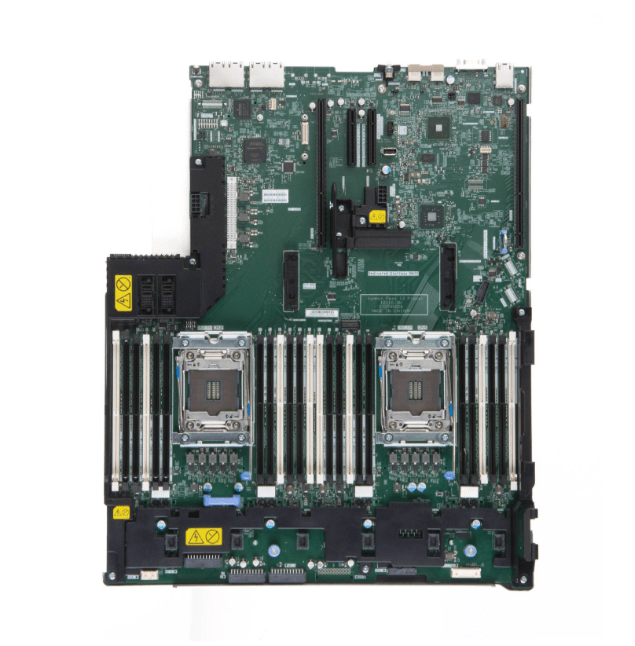

Lenovo System x3650 M5 Mainboard – 01KN186
The Lenovo System x3650 M5 Mainboard – 01KN186 is a high-performance server motherboard designed for enterprise-level computing. It ensures reliability, scalability, and optimal performance for your Lenovo x3650 M5 server. This genuine Lenovo mainboard is available at Datacom Technologies BD with the best price and warranty. Get fast delivery and expert support across Bangladesh.
Lenovo System x3650 M5 Mainboard Specification
| Feature | Specification |
|---|---|
| CPU Support | Supports up to two Intel Xeon E5-2600 v4 or E5-2600 v3 series processors |
| Chipset | Intel C612 |
| Memory | 24 DDR4 DIMM slots, Supports RDIMMs and LRDIMMs, Up to 1.5 TB memory capacity |
| Expansion Slots | Multiple PCIe 3.0 slots (x8 and x16), May include slots for ML2 network cards |
| Storage Controllers | Integrated SATA controller, Options for RAID controllers (e.g., M5210) |
| Networking | Integrated Gigabit Ethernet, Options for 10GbE with ML2 adapters |
| I/O Ports | USB 3.0 and USB 2.0 ports, Serial port (optional), Management port |
| Form Factor | Designed for Lenovo System x3650 M5 server chassis |
Description
The Lenovo System x3650 M5 Mainboard – 01KN186 is the heart of the Lenovo System x3650 M5 server, a powerful 2U rack server designed for demanding workloads in data centers and enterprise environments. This motherboard is engineered to support the Intel Xeon E5-2600 v4 and v3 processor families, providing a wide range of processing power options to meet diverse needs.
Key Features and Capabilities:
- Dual Processor Support: The motherboard supports up to two Intel Xeon E5-2600 v4 or v3 series processors, enabling high core counts and massive multithreading capabilities for applications that require significant processing power.
- Extensive Memory Capacity: With 24 DDR4 DIMM slots, the motherboard can accommodate up to 1.5 TB of memory, using a combination of registered DIMMs (RDIMMs) and load-reduced DIMMs (LRDIMMs). This generous memory capacity is essential for virtualization, in-memory databases, and other memory-intensive applications.
- Flexible Expansion: The motherboard offers multiple PCIe 3.0 slots in x8 and x16 configurations, providing ample room for expansion cards such as network adapters, storage controllers, and GPUs. This flexibility allows you to customize the server to meet your specific requirements.
- Integrated and Optional Storage Controllers: The motherboard typically includes an integrated SATA controller for basic storage needs. However, for more advanced RAID configurations and enhanced data protection, you can install optional RAID controllers, such as the Lenovo M5210.
- High-Speed Networking: The motherboard comes with integrated Gigabit Ethernet ports for standard network connectivity. Additionally, it supports optional 10GbE network adapters via ML2 slots, enabling high-bandwidth communication for demanding network environments.
- Integrated Management: The motherboard features an integrated management module (IMM) that provides remote management capabilities, allowing you to monitor and control the server from anywhere.
Get in Touch with Datacom Technologies (BD)
- 📞 Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Lenovo System x3650 M5 Mainboard – 01KN186 in Bangladesh?
The latest price of Lenovo System x3650 M5 Mainboard – 01KN186 in Bangladesh starts from BDT-50,000/= to BDT-75,000/= (Estimated) depending on quantity and warranty. To order your Lenovo Server Motherboard, please contact us by call or WhatsApp (+8801748173213). You can also browse our online shop “Datacom Technologies (BD)” and order your Lenovo Server Motherboard.
