Description

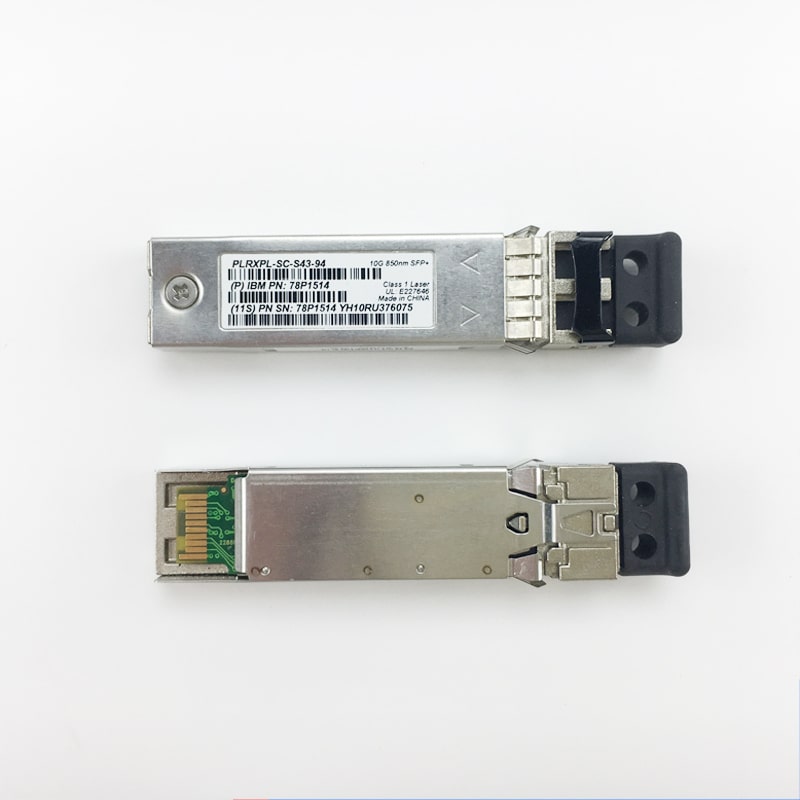

IBM 78P1514 10G SFP+ Transceiver Module
Specification
| Specification | Details |
|---|---|
| Part Number | 78P1514 |
| Form Factor | SFP+ (Small Form-Factor Pluggable) |
| Data Rate | 10 Gbps |
| Interface | Optical |
| Connector Type | LC Duplex |
| Wavelength | 850nm (for SR model) or 1310nm (for LR model) |
| Reach/Distance | 300m (SR) / 10km (LR) |
| Fiber Type | Multi-mode fiber (SR) / Single-mode fiber (LR) |
| Temperature Range | 0°C to 70°C (Operating) |
| Voltage Supply | 3.3V |
| Power Consumption | <1W |
| DDM (Digital Diagnostics Monitoring) | Yes |
| Protocols Supported | IEEE 802.3ae 10GBASE-SR / 10GBASE-LR |
| Compatibility | IBM Servers and Switches, Multi-vendor support |
| Regulatory Compliance | RoHS, FCC, CE, TUV, UL |
Description
The IBM 78P1514 10G SFP+ Transceiver Module is a high-performance, hot-swappable optical transceiver designed for IBM networking and server environments. This module provides a reliable, cost-effective solution for high-speed data transmission, supporting 10-Gigabit Ethernet (10GbE) networks over fiber-optic cables. It offers seamless integration with IBM networking devices while ensuring compatibility with industry standards for enhanced flexibility. This transceiver module is available in different variants based on distance and fiber type, with the SR (Short Range) model operating on 850nm wavelength for multi-mode fiber (MMF), and the LR (Long Range) model operating at 1310nm wavelength for single-mode fiber (SMF) applications. The SR variant supports transmission distances up to 300 meters, making it ideal for intra-data center connectivity, while the LR variant supports distances up to 10 kilometers, making it suitable for long-distance networking. One of the key features of the IBM 78P1514 transceiver module is its Digital Diagnostics Monitoring (DDM) capability, which allows network administrators to monitor important parameters such as temperature, voltage, and optical signal strength. This feature enhances network management by providing real-time diagnostics, ensuring proactive maintenance, and minimizing potential downtime. In terms of power efficiency, the IBM 78P1514 operates on a low power consumption of less than 1W, which contributes to energy savings and reduces the overall thermal footprint within network environments. Its hot-swappable design allows for easy installation and replacement without disrupting active network operations, making it convenient for IT professionals. The IBM 78P1514 SFP+ transceiver module is compliant with industry standards such as IEEE 802.3ae for 10GBASE-SR/LR, ensuring compatibility with a wide range of IBM networking products, including IBM BladeCenter, System x servers, and IBM Flex System networking switches. Additionally, the module supports multi-vendor interoperability, making it a versatile option for enterprises using heterogeneous networking environments. Security and reliability are also key aspects of this transceiver module. Its robust design ensures consistent high-speed data transmission with minimal signal loss, reducing the risk of network failures. The module is certified for compliance with RoHS, FCC, CE, TUV, and UL regulations, ensuring adherence to global safety and environmental standards.
Get in Touch with Datacom Technologies (BD)
📞 Call/WhatsApp: 01748173213
✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of IBM 78P1514 10G SFP+ Transceiver Module in Bangladesh?
The latest price of IBM 78P1514 10G SFP+ Transceiver Module in Bangladesh starts from BDT-16,000/= to BDT-26,000/= (Estimated) depending on quantity and warranty. To order your Ciena Transceiver, please contact us by call or WhatsApp (+8801748173213). You can also browse our online shop “Datacom Technologies (BD)” and order your Ciena SFP Transceiver.
