Description

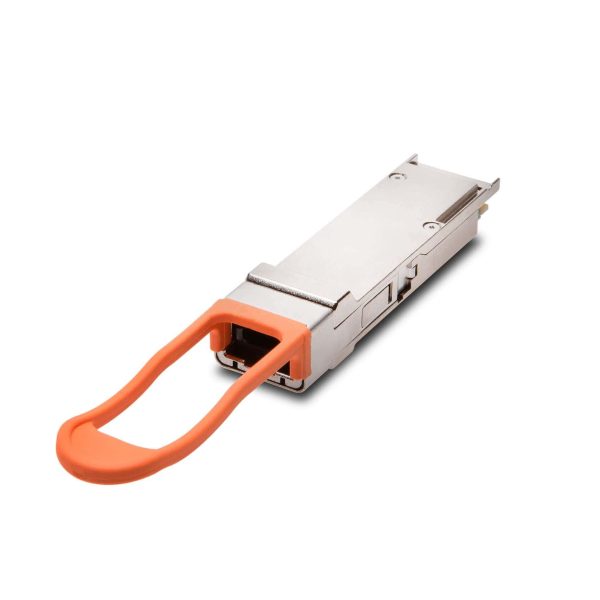

About Fortinet 100G 10KM Transceiver (FN-TRAN-QSFP28-LR)
“Experience high-speed, long-distance connectivity with the Fortinet 100G 10KM QSFP28-LR Transceiver. Designed for demanding network environments, this transceiver delivers exceptional performance and reliability. Contact Datacom Technologies BD today for the best price and expert guidance on integrating this powerful solution into your network infrastructure.”
Specification
| Parameter | Value |
|---|---|
| Part Number | FN-TRAN-QSFP28-LR |
| Data Rate | 100 Gbps |
| Interface | QSFP28 |
| Cable Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Wavelength | 1310 nm |
| Maximum Distance | 10 km |
| Supported Standards | 100GBASE-LR4, IEEE 802.3ba |
| Power Consumption | ≤ 3.5 W |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| DDM/DOM | Supported |
Description
The Fortinet FN-TRAN-QSFP28-LR is a 100G QSFP28 optical transceiver designed for long-reach data center and enterprise networking applications. It supports the 100GBASE-LR4 standard, enabling high-speed data transmission over single-mode fiber (SMF) cables at distances up to 10 kilometers.
This transceiver utilizes four parallel optical channels, each operating at 25.78 Gbps, to achieve an aggregate data rate of 103.125 Gbps. It employs wavelength division multiplexing (WDM) technology to transmit and receive multiple wavelengths of light simultaneously over a single fiber, maximizing bandwidth utilization.
The FN-TRAN-QSFP28-LR features digital diagnostic monitoring (DDM) capabilities, allowing network administrators to monitor real-time operating parameters such as temperature, voltage, and laser bias current. This proactive monitoring helps to ensure network stability and prevent potential issues.
Supported/Comparable Models
The FN-TRAN-QSFP28-LR is compatible with a wide range of Fortinet network devices, including switches and routers. It is also interoperable with other 100GBASE-LR4 compliant transceivers from various vendors, providing flexibility in network deployments.
Get in Touch with Datacom Technologies (BD)
- 📞 Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the Price of Fortinet 100G 10KM Transceiver (FN-TRAN-QSFP28-LR) in Bangladesh?
The latest price of Fortinet 100G 10KM Transceiver (FN-TRAN-QSFP28-LR) in Bangladesh ranges from 70,000৳ to 110,000৳ (Estimate) per unit, depending on the specific model, features, and warranty. To place an order for your Fortinet 100G Transceiver Module, please contact us via call or WhatsApp at (+8801748173213). Alternatively, you can browse our collection of Fortinet Transceiver Module and directly order the one that meets your needs.
