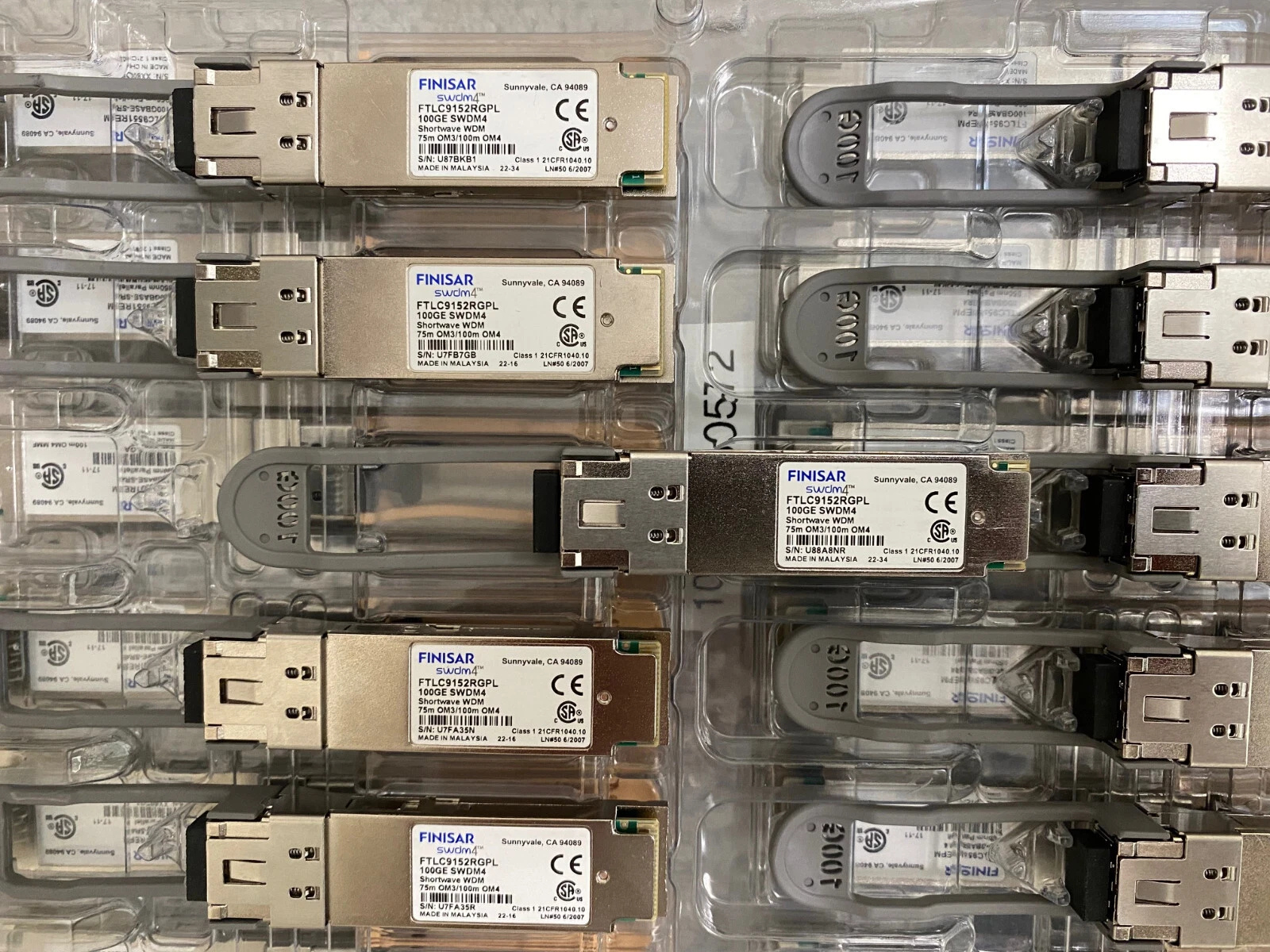

FINISAR FTLC9152RGPL2 100G QSFP28 Optical Transceiver Module
The FINISAR FTLC9152RGPL2 100G QSFP28 Optical Transceiver Module from Datacom Technologies BD delivers ultra-high-speed data transfer with reliable performance. Its SWDM4 technology and OM5 multimode fiber support ensure efficient connectivity up to 150 meters. Designed for durability and compliance, it’s ideal for modern data center and network infrastructure needs.
Specification Table
| Feature | Specification |
|---|---|
| Form Factor | QSFP28 (Quad Small Form-factor Pluggable) |
| Data Rate | 103.1 Gbps aggregate |
| Transmission Technology | SWDM4 (Short Wavelength Division Multiplexing) |
| Fiber Type | Duplex Multimode Fiber (MMF) |
| Connector Type | LC Duplex |
| Wavelengths | 850, 880, 910, 940 nm |
| Maximum Reach | Up to 150 meters on OM5 MMF |
| Transmitter | 4×25.78 Gbps VCSEL-based |
| Receiver | 4×25 Gbps PIN photodiode |
| Electrical Interface | 4x25G CAUI-4 |
| Power Consumption | ≤3.5W |
| Supply Voltage | 3.3V (single supply) |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Storage Temperature | -40°C to +85°C |
| Compliance | RoHS-6, QSFP28 MSA, IEEE 802.3bm CAUI-4 |
| Digital Diagnostics | Supported via I2C interface |
📝 Product Description
The Finisar FTLC9152RGPL2 is a high-performance 100G QSFP28 optical transceiver module designed for 100 Gigabit Ethernet (100GbE) applications over duplex multimode fiber (MMF). Utilizing Short Wavelength Division Multiplexing (SWDM4) technology, it efficiently transmits data at an aggregate rate of 103.1 Gbps over distances up to 150 meters on OM5 fiber.
This module features a hot-pluggable QSFP28 form factor, ensuring easy integration into compatible networking equipment. It employs four 25.78 Gbps VCSEL-based transmitters and four 25 Gbps PIN photodiode receivers, operating over wavelengths ranging from 850 to 940 nm. The electrical interface adheres to the 4x25G CAUI-4 standard, facilitating seamless communication with host systems.
Power consumption is capped at 3.5W, and the module operates within a supply voltage of 3.3V. It supports digital diagnostics through an I2C interface, allowing for real-time monitoring and management. The FTLC9152RGPL2 is RoHS-6 compliant, ensuring it meets environmental standards
Key Features
- High-Speed Data Transfer: Supports 100G Ethernet, ideal for data center and high-performance network applications.
- Form Factor: QSFP28 for easy integration into compatible switches and servers.
- Transmission Distance: Up to 10 km over single-mode fiber.
- Wavelength: 1310 nm for reliable long-distance transmission.
- Hot-Pluggable: Enables quick replacement without powering down devices.
- Low Power Consumption: Optimized for energy-efficient networking.
- Error Detection: Built-in digital diagnostics for monitoring real-time performance.
Where it Can Be Used?
- Data Centers: High-bandwidth links between servers and switches.
- Enterprise Networks: Backbone connections requiring 100G throughput.
- Telecommunications: Long-distance optical network applications.
- High-Performance Computing (HPC): Low-latency connections between computing clusters.
Installation Steps
- Power Off the Port (Optional): While hot-pluggable, powering off is recommended for safety.
- Remove Protective Caps: Take off the dust caps from both the transceiver and fiber cables.
- Insert the Transceiver: Align the QSFP28 module with the port and gently slide it in until it clicks.
- Connect Fiber Cables: Attach the appropriate single-mode fiber connectors (LC duplex).
- Verify Connection: Check link lights and monitor through network management tools.
- Configure Settings (If Needed): Adjust speed or diagnostic features through the switch or server interface.
Buy FINISAR FTLC9152RGPL2 100G QSFP28 Optical Transceiver Module at the Best Price from Datacom BD.
In Bangladesh, you can get FINISAR FTLC9152RGPL2 100G QSFP28 Optical Transceiver Module From Datacom. We have a large collection of latest FINISAR SFP Module to purchase for your Server. Order Online Or Visit our Office to get yours at lowest price. The FINISAR FTLC9152RGPL2 100G QSFP28 Transceiver comes with 1 Year warranty.
Get in Touch with Datacom Technologies BD
- 📞 Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of FINISAR FTLC9152RGPL2 100G QSFP28 Optical Transceiver Module in Bangladesh?
The estimated price of FINISAR FTLC9152RGPL2 100G QSFP28 Optical Transceiver Module in Bangladesh is 55,500৳. You can buy the FINISAR FTLC9152RGPL2 100G QSFP28 Transceiver Module at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
