Description

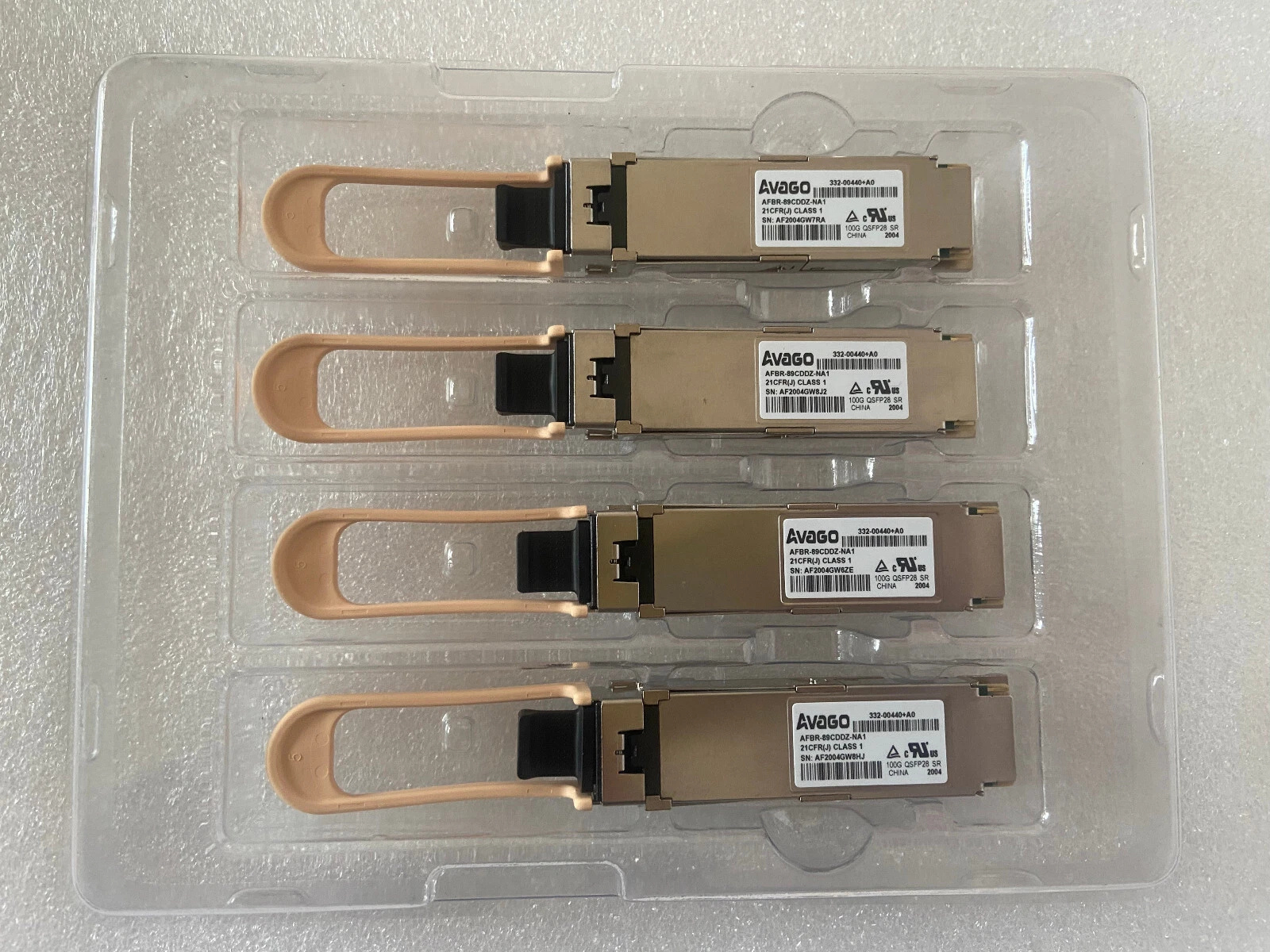

Avago AFBR-89CDDZ-NA1 QSFP28 100GBASE-SR4 332-00440+A0 850nm Transceiver Module
The Avago AFBR-89CDDZ-NA1 QSFP28 100GBASE-SR4 transceiver module delivers high‑performance 100Gbps connectivity for modern data centers and enterprise networks. Designed for short‑reach applications, it supports up to 100 meters over OM4 multi‑mode fiber with MPO‑12 connectors. Ideal for high‑speed, reliable networking, available now at Datacom Technologies BD.
Specification Table
| Specification | Details |
|---|---|
| Model | Avago AFBR-89CDDZ-NA1 |
| Part Number | 332-00440+A0 |
| Form Factor | QSFP28 (Quad Small Form-factor Pluggable 28) |
| Data Rate | 100 Gbps |
| Interface | 100GBASE-SR4 |
| Wavelength | 850 nm |
| Reach/Distance | Up to 70 m (OM3 MMF) / Up to 100 m (OM4 MMF) |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Connector Type | MPO-12 |
| Operating Temperature | 0°C to 70°C |
| Digital Diagnostics | Yes (DDM/DOM support) |
| Power Consumption | ≤ 3.5 W |
| Compliance | IEEE 802.3bm, SFF-8665 |
Product Description
The Avago AFBR-89CDDZ-NA1 QSFP28 100GBASE-SR4 optical transceiver is a high-performance, compact, and low-power solution for high-speed data center interconnects. Designed to support 100 Gigabit Ethernet (100GbE) over multi-mode fiber, it delivers exceptional reliability and efficiency for short-range optical communication. Operating at a wavelength of 850 nm, this module can transmit data up to 70 meters on OM3 fiber or 100 meters on OM4 fiber, making it ideal for data centers, enterprise networks, and high-performance computing environments.
Featuring an MPO-12 fiber connector, the AFBR-89CDDZ-NA1 ensures easy integration into high-density network infrastructures. The module fully complies with IEEE 802.3bm and the QSFP28 MSA standards, ensuring compatibility with a wide range of networking equipment. It supports Digital Diagnostics Monitoring (DDM), allowing real-time monitoring of parameters like temperature, voltage, and optical power for proactive network management.
With a maximum power consumption of just 3.5 watts, it is optimized for energy efficiency while maintaining robust performance. The hot-swappable design ensures easy installation and replacement without network downtime. Whether for high-speed server connections, storage networking, or cloud applications, the Avago AFBR-89CDDZ-NA1 offers a dependable and cost-effective optical transceiver solution for modern data center needs.
Key Features
- Form Factor: QSFP28 (Quad Small Form-Factor Pluggable)
- Data Rate: Supports up to 100Gbps Ethernet
- Wavelength: 850nm (SR4 – Short Range)
- Connector Type: MPO/MTP 12-fiber connector
- Transmission Distance: Up to 100 meters over OM4 multimode fiber (MMF)
- Low Power Consumption: Typically less than 3.5W
- Digital Diagnostics Monitoring (DDM): Allows real-time monitoring of transceiver performance
- Hot-Pluggable: Easy to install or replace without powering down the system
- Compatibility: Compliant with IEEE 802.3bm and QSFP28 MSA standards
Where it Can Be Used?
- Data Centers: High-speed connections between switches, routers, and servers
- Enterprise Networks: For backbone uplinks requiring 100G Ethernet
- Cloud Computing Platforms: High-bandwidth interconnects for cloud infrastructure
- High-Performance Computing (HPC): For low-latency, high-speed communication
- Telecommunication Networks: Backbone and aggregation layers
Installation Steps
- Power Off (Optional but Recommended): Though hot-pluggable, ensure safety by following your device’s handling guidelines.
- Prepare Fiber Cables: Use clean MPO/MTP multimode fiber cables (OM3/OM4).
- Insert the Transceiver: Gently slide the QSFP28 transceiver into the compatible port until it clicks.
- Connect the Cable: Attach the MPO/MTP connector to the transceiver securely.
- Verify Link: Check the device interface status via the network device CLI or monitoring tools to ensure the link is up.
- Enable Port (If Disabled): Configure and enable the interface for 100G operation.
Buy Avago 100G QSFP28 Transceiver Module from Datacom BD Online
In Bangladesh, you can get Avago 100G QSFP28 Transceiver Module From Datacom. We have a large collection of latest Fiber SFP Module to purchase. Order Online Or Visit our Office to get yours at lowest price. The Avago 100G QSFP28 Transceiver Module comes with 1 Year warranty.
Get in Touch with Datacom Technologies (BD)
- 📞 Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Avago 100G QSFP28 Transceiver Module in Bangladesh?
The estimated price of Avago 100G QSFP28 Transceiver Module in Bangladesh is 65,000৳. You can buy the Avago 100G QSFP28 Transceiver Module at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
